Hands-on Exercise 8-3

Analytical Mapping

Author

Teo Suan Ern

Published

February 22, 2024

Modified

March 9, 2024

Note: First modified to include author’s details. Last modified to rename hands-on exercise number.

1. Getting Started

1.1 Install and launch R packages

For the purpose of this exercise, the following R packages will be used.

Show code
pacman::p_load(sf, tmap, tidyverse)

1.2 Import the data

A prepared data set called NGA_wp.rds will be used. The data set is a polygon feature data.frame providing information on water point of Nigeria at the LGA level. You can find the data set in the rds sub-direct of the hands-on data folder.

Use appropriate sf function import NGA_wp.rds into R environment.

Show the code
NGA_wp <- read_rds("data/rds/NGA_wp.rds")

2. Basic Choropleth Mapping

2.1 Visualising distribution of non-functional water point

Show the code
p1 <- tm_shape(NGA_wp) +
  tm_fill("wp_functional",
          n = 10,
          style = "equal",
          palette = "Blues") +
  tm_borders(lwd = 0.1,
             alpha = 1) +
  tm_layout(main.title = "Distribution of functional water point by LGAs",
            legend.outside = FALSE)
Show the code
p2 <- tm_shape(NGA_wp) +
  tm_fill("total_wp",
          n = 10,
          style = "equal",
          palette = "Blues") +
  tm_borders(lwd = 0.1,
             alpha = 1) +
  tm_layout(main.title = "Distribution of total  water point by LGAs",
            legend.outside = FALSE)

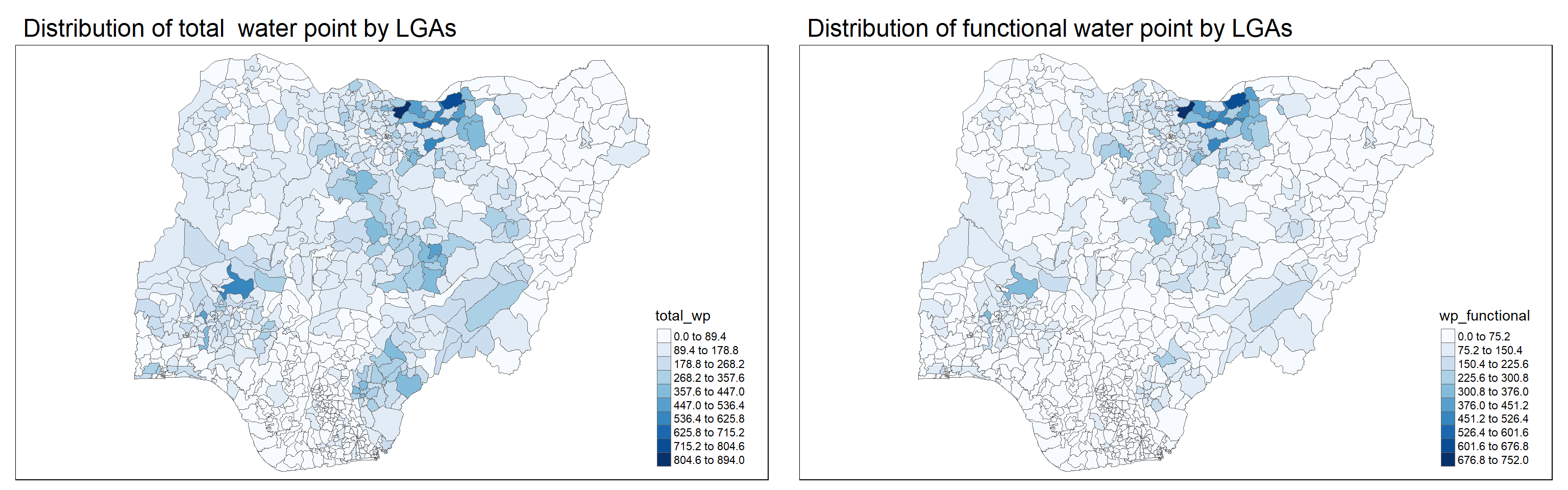

tmap_arrange(p2, p1, nrow = 1)

3. Choropleth Map for Rates

Note

It is important to map rates rather than counts of things, and that is for the simple reason that water points are not equally distributed in space. That means that if we do not account for how many water points are somewhere, we end up mapping total water point size rather than our topic of interest.

3.1 Deriving Proportion of Functional Water Points and Non-Functional Water Points

We will tabulate the proportion of functional water points and the proportion of non-functional water points in each LGA. In the following code chunk, mutate() from dplyr package is used to derive two fields, namely pct_functional and pct_nonfunctional.

NGA_wp <- NGA_wp %>%
  mutate(pct_functional = wp_functional/total_wp) %>%
  mutate(pct_nonfunctional = wp_nonfunctional/total_wp)

3.2 Plotting map of rate

Show the code

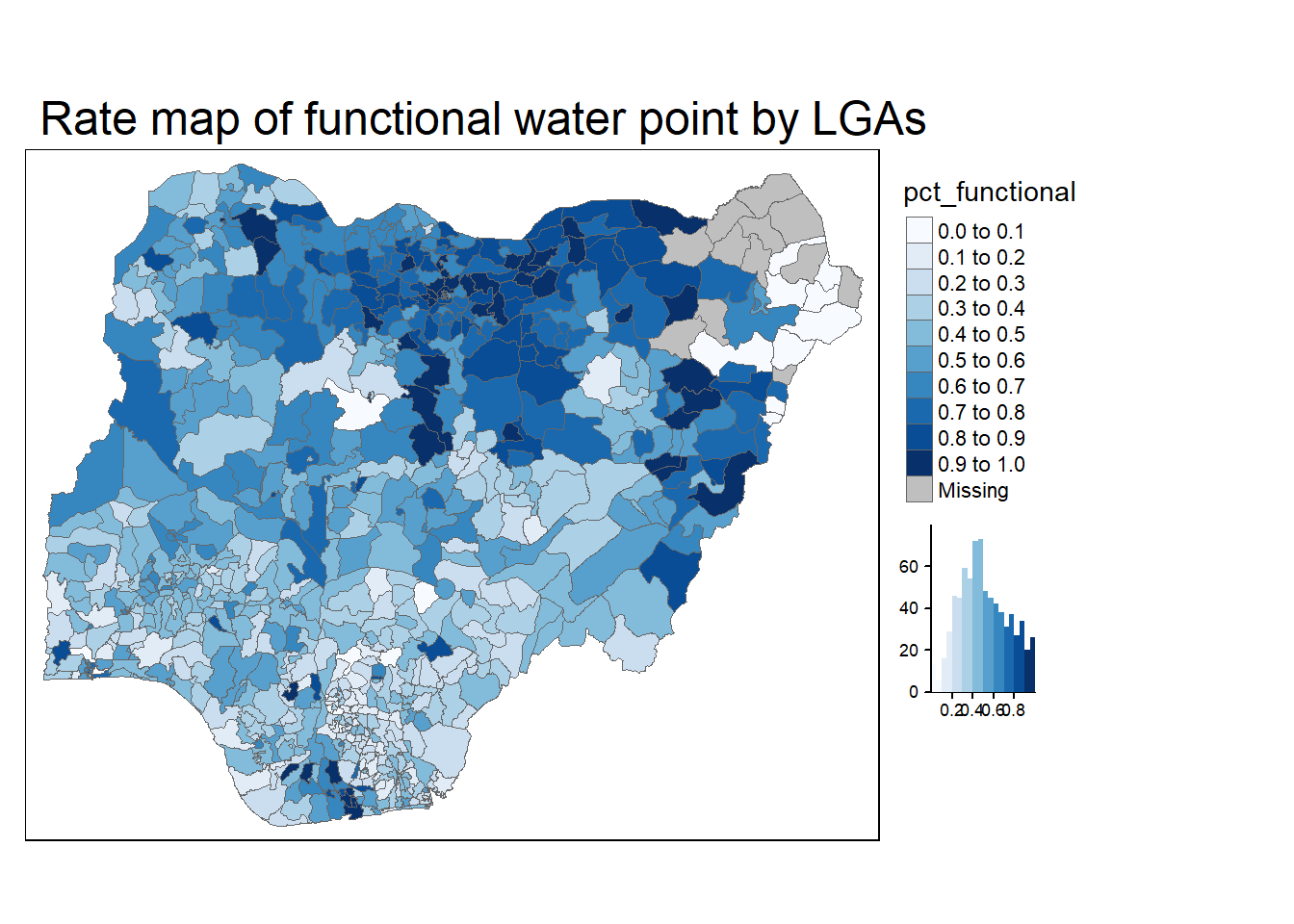

tm_shape(NGA_wp) +
  tm_fill("pct_functional",
          n = 10,
          style = "equal",
          palette = "Blues",
          legend.hist = TRUE) +
  tm_borders(lwd = 0.1,
             alpha = 1) +
  tm_layout(main.title = "Rate map of functional water point by LGAs",
            legend.outside = TRUE)

4. Extreme Value Maps

Extreme value maps are variations of common choropleth maps where the classification is designed to highlight extreme values at the lower and upper end of the scale, with the goal of identifying outliers. These maps were developed in the spirit of spatializing EDA, i.e., adding spatial features to commonly used approaches in non-spatial EDA (Anselin 1994).

4.1 Percentile Map

The percentile map is a special type of quantile map with six specific categories: 0-1%,1-10%, 10-50%,50-90%,90-99%, and 99-100%. The corresponding breakpoints can be derived by means of the base R quantile command, passing an explicit vector of cumulative probabilities as c(0,.01,.1,.5,.9,.99,1). Note that the begin and endpoint need to be included.

Data Preparation

Step 1: Exclude records with NA by using the code chunk below.

Show the code
NGA_wp <- NGA_wp %>%
  drop_na()

Step 2: Creating customised classification and extracting values

Show the code
percent <- c(0,.01,.1,.5,.9,.99,1)
var <- NGA_wp["pct_functional"] %>%
  st_set_geometry(NULL)
quantile(var[,1], percent)
       0%        1%       10%       50%       90%       99%      100%
0.0000000 0.0000000 0.2169811 0.4791667 0.8611111 1.0000000 1.0000000
Important

When variables are extracted from an sf data.frame, the geometry is extracted as well. For mapping and spatial manipulation, this is the expected behavior, but many base R functions cannot deal with the geometry. Specifically, the quantile() gives an error. As a result st_set_geomtry(NULL) is used to drop geomtry field.

Creating the get.var function

Step1 : Write an R function as shown below to extract a variable (i.e. wp_nonfunctional) as a vector out of an sf data.frame.

  • arguments:
    • vname: variable name (as character, in quotes)
    • df: name of sf data frame
  • returns:
    • v: vector with values (without a column name)
Show the code
get.var <- function(vname,df) {
  v <- df[vname] %>%
    st_set_geometry(NULL)
  v <- unname(v[,1])
  return(v)
}

A percentile mapping function

Step 2: Write a percentile mapping function by using the code chunk below.

Show the code
percentmap <- function(vnam, df, legtitle=NA, mtitle="Percentile Map"){
  percent <- c(0,.01,.1,.5,.9,.99,1)
  var <- get.var(vnam, df)
  bperc <- quantile(var, percent)
  tm_shape(df) +
  tm_polygons() +
  tm_shape(df) +
     tm_fill(vnam,
             title=legtitle,
             breaks=bperc,
             palette="Blues",
          labels=c("< 1%", "1% - 10%", "10% - 50%", "50% - 90%", "90% - 99%", "> 99%"))  +
  tm_borders() +
  tm_layout(main.title = mtitle,
            title.position = c("right","bottom"))
}

Test drive the percentile mapping function

Step 3: To run the function, type the code chunk as shown below.

Show the code

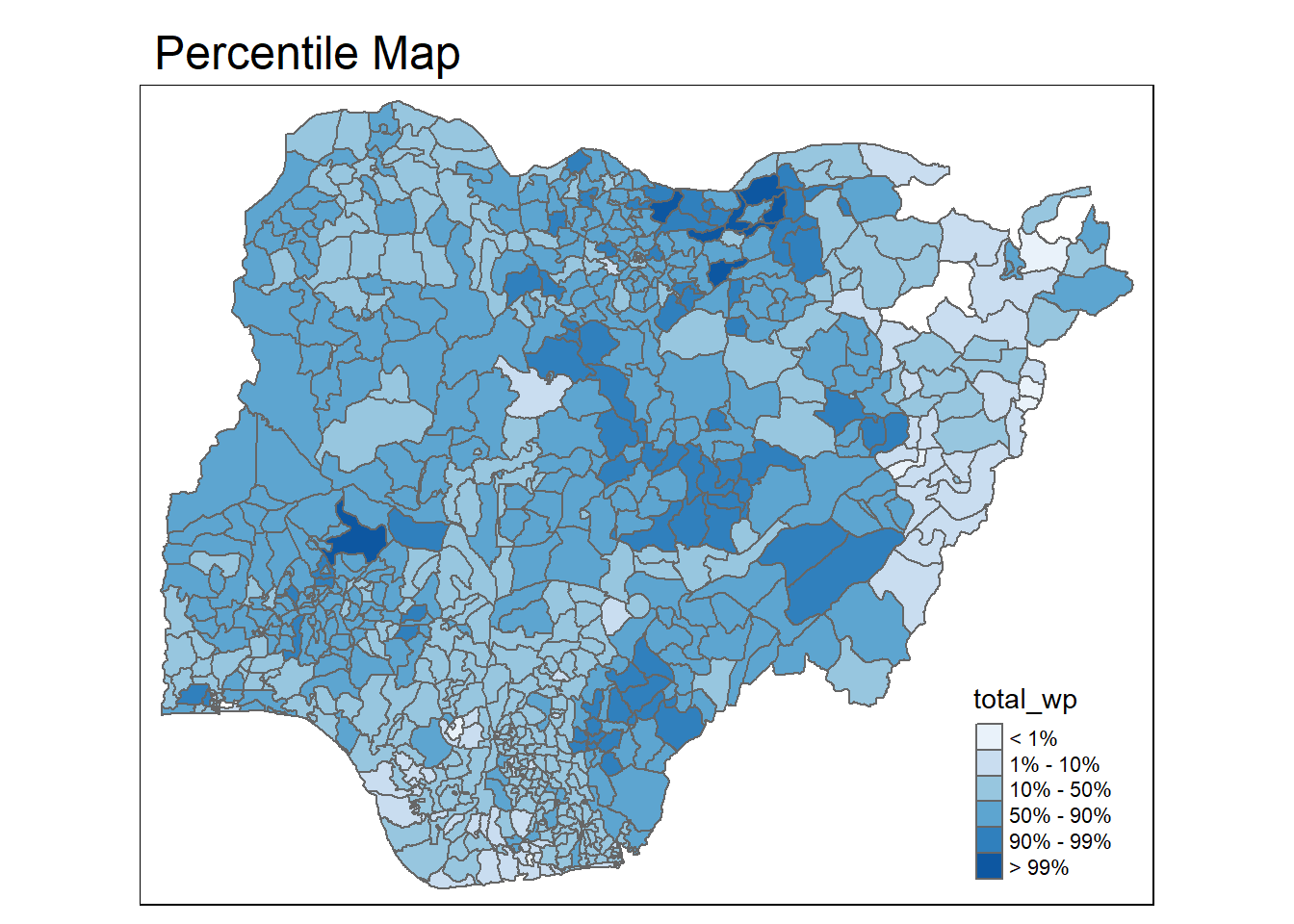

percentmap("total_wp", NGA_wp)

4.2 Box map

A box map is an augmented quartile map, with an additional lower and upper category. When there are lower outliers, then the starting point for the breaks is the minimum value, and the second break is the lower fence.

In contrast, when there are no lower outliers, then the starting point for the breaks will be the lower fence, and the second break is the minimum value (there will be no observations that fall in the interval between the lower fence and the minimum value).

Show the code

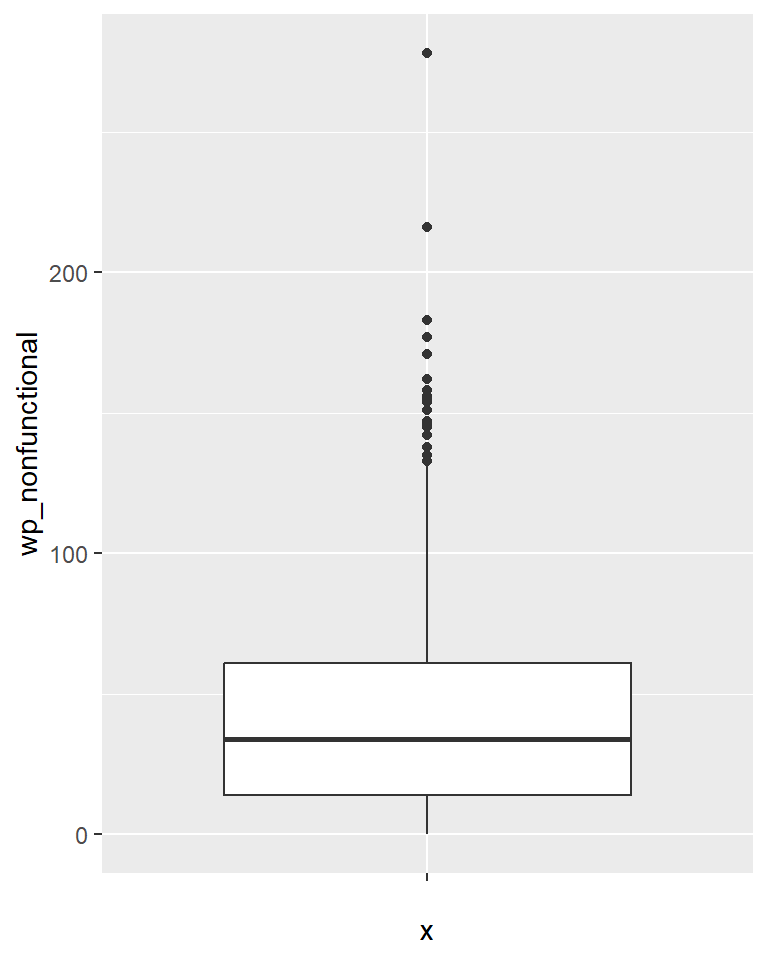

ggplot(data = NGA_wp,
       aes(x = "",
           y = wp_nonfunctional)) +
  geom_boxplot()

  • Displaying summary statistics on a choropleth map by using the basic principles of boxplot.

  • To create a box map, a custom breaks specification will be used. However, there is a complication. The break points for the box map vary depending on whether lower or upper outliers are present.

Creating the boxbreaks function

The code chunk below is an R function that creating break points for a box map.

  • arguments:
    • v: vector with observations
    • mult: multiplier for IQR (default 1.5)
  • returns:
    • bb: vector with 7 break points compute quartile and fences
Show the code
boxbreaks <- function(v,mult=1.5) {
  qv <- unname(quantile(v))
  iqr <- qv[4] - qv[2]
  upfence <- qv[4] + mult * iqr
  lofence <- qv[2] - mult * iqr
  # initialize break points vector
  bb <- vector(mode="numeric",length=7)
  # logic for lower and upper fences
  if (lofence < qv[1]) {  # no lower outliers
    bb[1] <- lofence
    bb[2] <- floor(qv[1])
  } else {
    bb[2] <- lofence
    bb[1] <- qv[1]
  }
  if (upfence > qv[5]) { # no upper outliers
    bb[7] <- upfence
    bb[6] <- ceiling(qv[5])
  } else {
    bb[6] <- upfence
    bb[7] <- qv[5]
  }
  bb[3:5] <- qv[2:4]
  return(bb)
}

Creating the get.var function

The code chunk below is an R function to extract a variable as a vector out of an sf data frame.

  • arguments:
    • vname: variable name (as character, in quotes)
    • df: name of sf data frame
  • returns:
    • v: vector with values (without a column name)
Show the code
get.var <- function(vname,df) {
  v <- df[vname] %>% st_set_geometry(NULL)
  v <- unname(v[,1])
  return(v)
}

Test drive the newly created function

Test the newly created function with the code chunk below.

Show the code
var <- get.var("wp_nonfunctional", NGA_wp)
boxbreaks(var)
[1] -56.5   0.0  14.0  34.0  61.0 131.5 278.0

Boxmap function

The code chunk below is an R function to create a box map. arguments:

  • vnam: variable name (as character, in quotes)

  • df: simple features polygon layer

  • legtitle: legend title

  • mtitle: map title

  • mult: multiplier for IQR

  • returns: a tmap-element (plots a map)

Show the code
boxmap <- function(vnam, df,
                   legtitle=NA,
                   mtitle="Box Map",
                   mult=1.5){
  var <- get.var(vnam,df)
  bb <- boxbreaks(var)
  tm_shape(df) +
    tm_polygons() +
  tm_shape(df) +
     tm_fill(vnam,title=legtitle,
             breaks=bb,
             palette="Blues",
          labels = c("lower outlier",
                     "< 25%",
                     "25% - 50%",
                     "50% - 75%",
                     "> 75%",
                     "upper outlier"))  +
  tm_borders() +
  tm_layout(main.title = mtitle,
            title.position = c("left",
                               "top"))
}
Show the code
tmap_mode("plot")

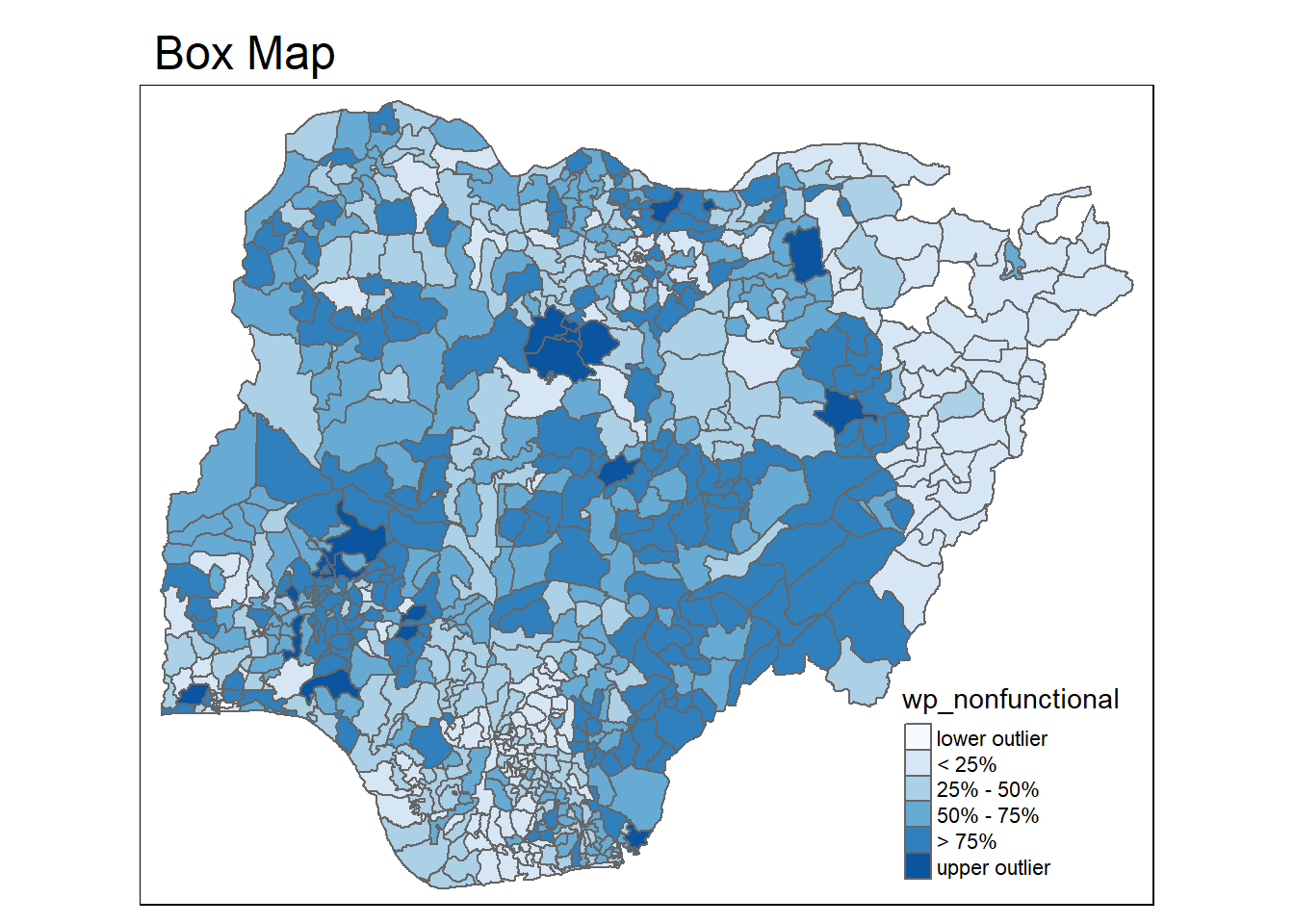

boxmap("wp_nonfunctional", NGA_wp)

5. References
